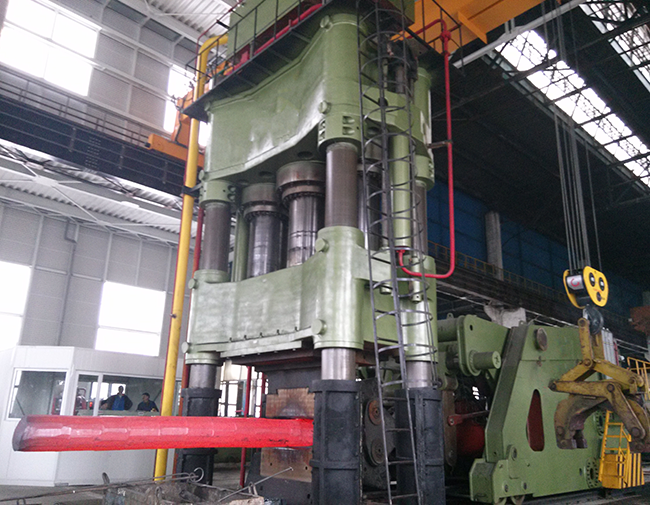

Y13 Hydraulic Open Die Forging Press Introduction
Hydraulic Open Die Forging Press It includes a general hydraulic free forging press and a special ring rolling blanking hydraulic press. The general hydraulic free forging press is mainly used in metal open die forging, also used for bolster die forging,with functions of fast forging, normal forging and pressure keeping, etc, satisfying various forging technical requirements, such as upsetting, drawing out, piercing, saddle forging, bending, offset forging, etc.
Features of Hydraulic Open Die Forging Press :
1、Intellectualized PLC control system, with Human-Computer Interface touch screen.
2、Multilevel pressure discharging system increases the equipment’s stability.
3、Easily got high forging depth.
4、Can match with manipulator to build forging line.
5、Three cross beams and four columns, high rigidity structure.
6、Multistage overloading protection system.
7、Reliable electrical cooling system.
8、Can supply mobile and rotary worktable.
9、Long-distance control in the operating room decreases labor intensity and improves the working environment.
10、The convenient changing device of upper forging dies, increases the production efficiency.
